Brass Ball Valves & Industrial Valve Parts: Specs for Quotes
How to source brass ball valves and related industrial valve parts from Jamnagar — forged blanks, machined seats, stems, thread standards and quotation fields that prevent leak-path mistakes.
A ball valve is an assembly, not a single turned slug. Buyers looking for a brass ball valves manufacturer should decide early whether they need complete valve assemblies as listed, or component sets — bodies, balls, stems, glands and related machined parts — for their own build.
On Jamnagar.net, start with the valves category. Heavy near-net shapes often connect to forged brass blanks before final machining. This page explains the commercial language that keeps valve quotations honest and leak-paths off your complaint list.
- End connection standards stated per port
- Forged or machined route driven by geometry, not marketing
- Stem and sealing dimensions when you buy parts, not just “a valve”
- Pressure, temperature and media defined for service suitability
What “valve supply” can mean on a brass quotation
Enquiries arrive in three shapes. Label yours so the quote matches the scope.
- Catalogue valve / valve-related SKU — close to a listed geometry; confirm size and ends.
- Body + machining package — forged blank finished to your seat and thread drawing.

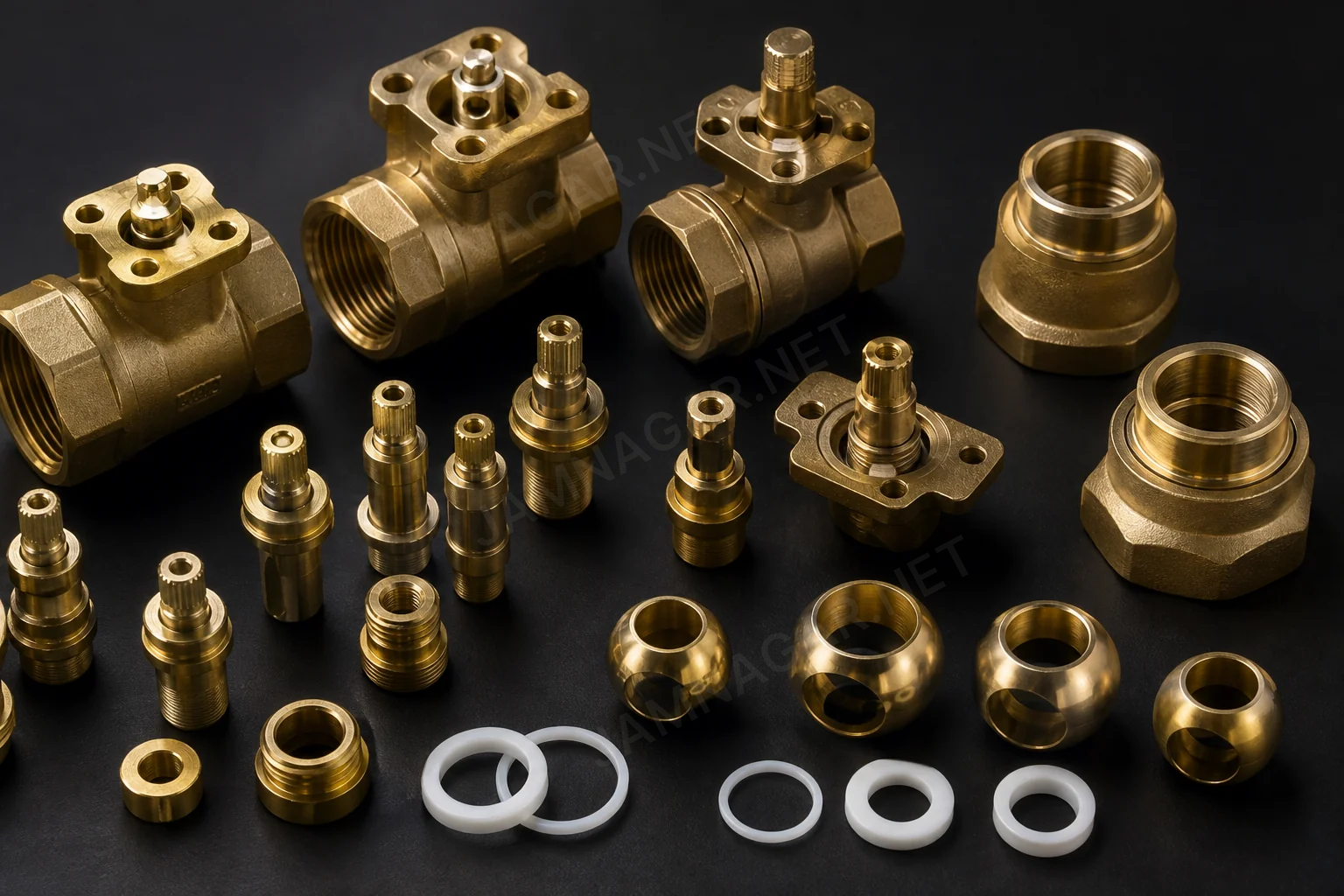

- Component kit — stems, balls, nuts, glands quoted as separate lines for OEM assembly.
If you write only “brass ball valve 1/2 inch,” we still need end standard, bore expectation, handle/stem style if relevant, and whether seals are included. Ambiguity here is how two suppliers quote two different products at two different prices.
Anatomy buyers should name
| Element | Why it changes cost | quotation hint |
|---|---|---|
| Body | Forging weight, machining time | Port size, wall notes, drawing rev |
| Ball | Sphere accuracy, bore, finish | Through-bore size, surface need |
| Stem | Turning + flats / anti-blowout features | Seal diameters, length |
| Seats / seals | Material and inclusion scope | Say if brass-only or full kit |
| End threads / flanges | Standard and class | BSP / NPT / other per end |
When you buy metal-only, say “metal-only.” When you need a sellable assembled valve with soft goods, say that too. Mixing those scopes on one vague line item creates invoices nobody can defend.
Forged blanks versus bar-turned routes

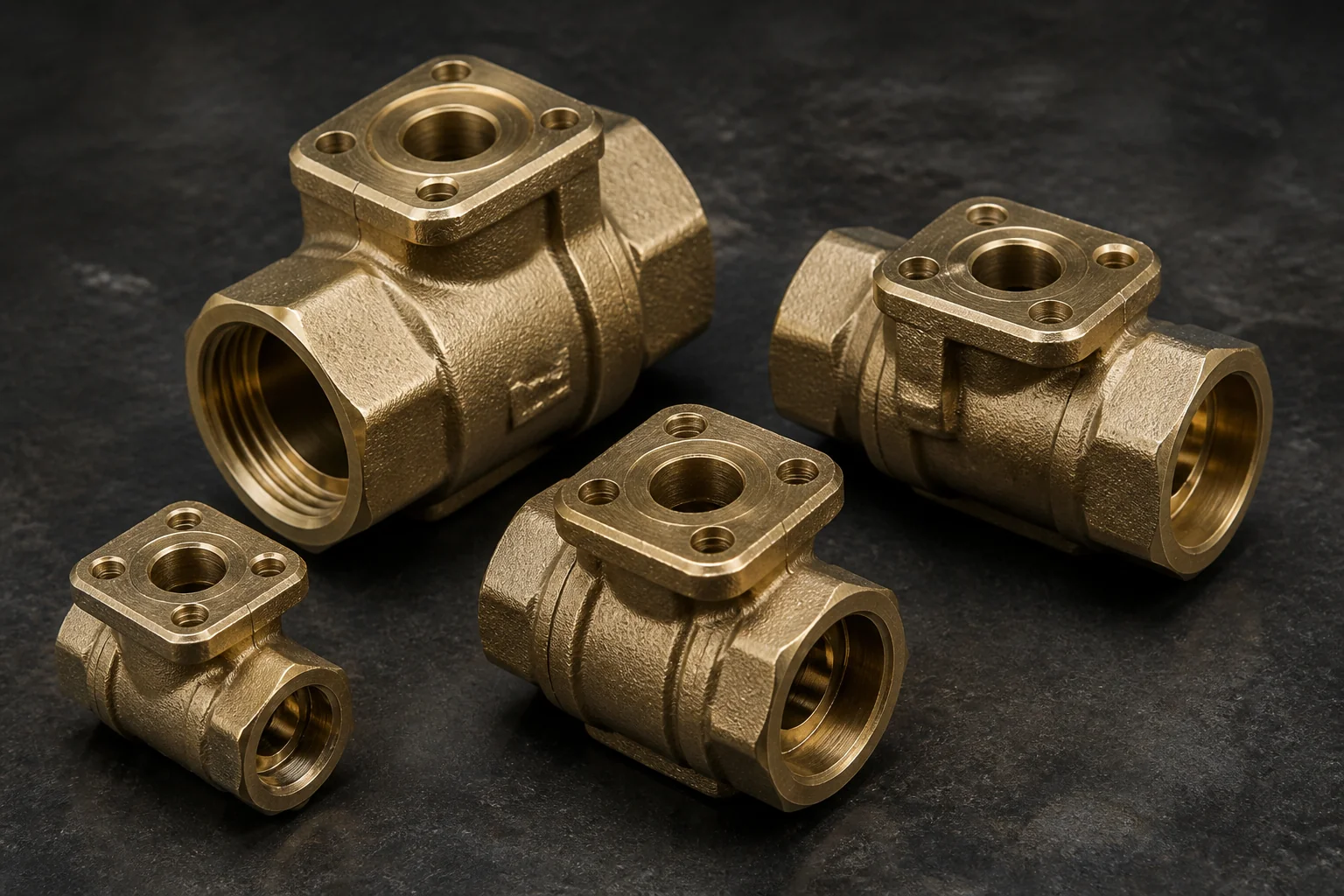

Many industrial valve bodies start as hot-forged brass near-net shapes, then go to machining for seats and threads. Smaller stems and some compact parts may be fully CNC turned from rod. Neither route is universally preferred — the drawing decides mass, grain flow needs and machining stock.
Shop-floor note: Seat angles and stem seal diameters are leak-critical. If your assembly uses a non-standard seat, do not describe it as “normal ball valve.” Attach the section view and mark seat angle and seal OD in the title block notes.
Browse forged capability under forged brass components when your body starts as a blank. If the enquiry is really a stem or adapter, say so early so we do not price a full body you do not need.
Spec checklist for valve quotations
| Field | Required detail |
|---|---|
| Scope | Complete valve / body only / component set |
| Size & ends | Nominal size + thread or connection standard |
| Drawings | Body section, stem, ball if custom |
| Alloy | Body and trim if different |
| Pressure / temp / media | Define intended service; resolve missing limits before order approval |
| Operation | Lever / stem features / lock notes if any |
| Quantity & packing | Loose parts vs assembled units |
| Testing expectations | Specify applicable acceptance standard, test method and records |
Pressure, media and honest limits
If your customer names a pressure class or test expectation, put it on the quotation request. If they do not, do not invent one to make the email look complete. Media notes (water, air, oils, gas-related duty) help us ask the right follow-up questions about alloy and seal scope. Gas or specialised duties need explicit callouts — a general water valve drawing is not a silent substitute.
Temperature bands matter when seats and stem seals are in scope. Metal-only body quotes still benefit from knowing the duty so obvious mismatches get flagged before metal is cut.
Industrial applications we see
Valve-related brass work shows up in water lines, compressed air equipment, process skids, equipment isolation points and OEM fluid modules. Reducing ports, panel mounts and unusual stem lengths are normal custom work when drawings are clear.
Lead time and first articles
Catalogue-near sizes move differently from new forged dies or first-time seat geometries. New forging tools, if required, change schedule and commercial terms. We confirm after drawing review. Staged approvals — soft jaw sample, then plated pilot, then bulk — should be written as stages, not assumed.
When the enquiry is really a turned stem or adapter rather than a full valve, the valves page still helps orientation — or send the stem drawing direct on quotation.
Packing for parts versus assemblies
Loose stems and balls need different protection from assembled valves with levers. If parts ship to your assembly cell, ask for bags or trays that match your line presentation. If assembled units ship to a distributor, say whether levers should be fitted, bagged separately, or omitted. Packing is part of the product definition on valve jobs, not an afterthought for the dispatch desk.
Mixed sizes in one master carton are fine when each inner is labelled. Unlabelled mixed inners are how wrong ports reach the wrong build station.
How OEMs keep valve quotations short but complete
Attach one body section, one stem drawing if custom, and a short scope sentence at the top of the email or form: “Body only, BSP ends, metal parts, no soft goods.” That sentence alone removes half the clarification loops. Add quantity, destination and whether first-article approval is required. Everything else can sit in the PDF title block where manufacturing already looks.
If you are replacing a running valve in the field, send the old sample measurements alongside the new print. Field replacements often hide odd stem lengths that a clean catalogue photo will not show.
FAQ
Am I requesting a complete valve or only brass parts?
State the scope explicitly: complete assembly, body only, or individual metal components. List balls, stems, seats, seals, handles and accessories as included or excluded. The quotation must identify the actual supply scope.
Can pressure rating be inferred from body size or material?
No. A rating depends on the complete design, material, seals, temperature and applicable requirements. Provide the intended service and obtain confirmation for the exact assembly; a body-only component does not establish a complete valve rating.
What should a valve test requirement include?
Specify the applicable acceptance standard, test type, medium, pressure, duration, leakage criterion and required records. Agree testing and witness or hold points before production. “Tested” alone does not define acceptance.
How do I specify a reducing valve?
Identify both ports, their sizes, connection standards and sealing design. Include a section drawing for custom bodies or asymmetric ports and mark the mating stem and seat interfaces.
What should be approved before bulk production?
Agree drawing revision, metal and seal scope, critical dimensions, material, finish and test plan. For a new design, define first-article approval and the point at which the bulk order may be released.
Are seals and handles included automatically?
Confirm every included component and whether it is supplied assembled or loose. Packing should protect sealing surfaces and keep size-specific parts identifiable.
Lock the scope, then the price
Valve work rewards precise scope. Tell us whether you need a body, a kit or a listed assembly, attach the critical sections, and ask for the quote once.
