How to Get an Accurate Brass Parts Quote: Drawing Checklist
A practical quotation checklist for brass parts — drawings, threads, grade, finish, quantity and packing fields that produce usable manufacturer quotes.
Most slow brass quotes are not slow because the workshop is busy. They are slow because the enquiry is incomplete. If you want to know how to get an accurate brass parts quote, treat the quotation request like a production input — same seriousness as a PO — not like a casual photo drop.
Use this page as a working checklist before you open get a quotation. Shortlist near matches in the catalogue when a standard SKU exists; attach drawings when it does not.
- One part number per line with revision
- Geometry from drawing or measured sample
- Grade, finish, quantity on the same message
- Destination / packing if they affect the rate
Why “please quote ASAP” still waits
The desk cannot invent missing pitch, missing thickness or missing alloy. Fast replies happen when the file is complete. Incomplete files create clarification loops that feel like delay but are really missing data.

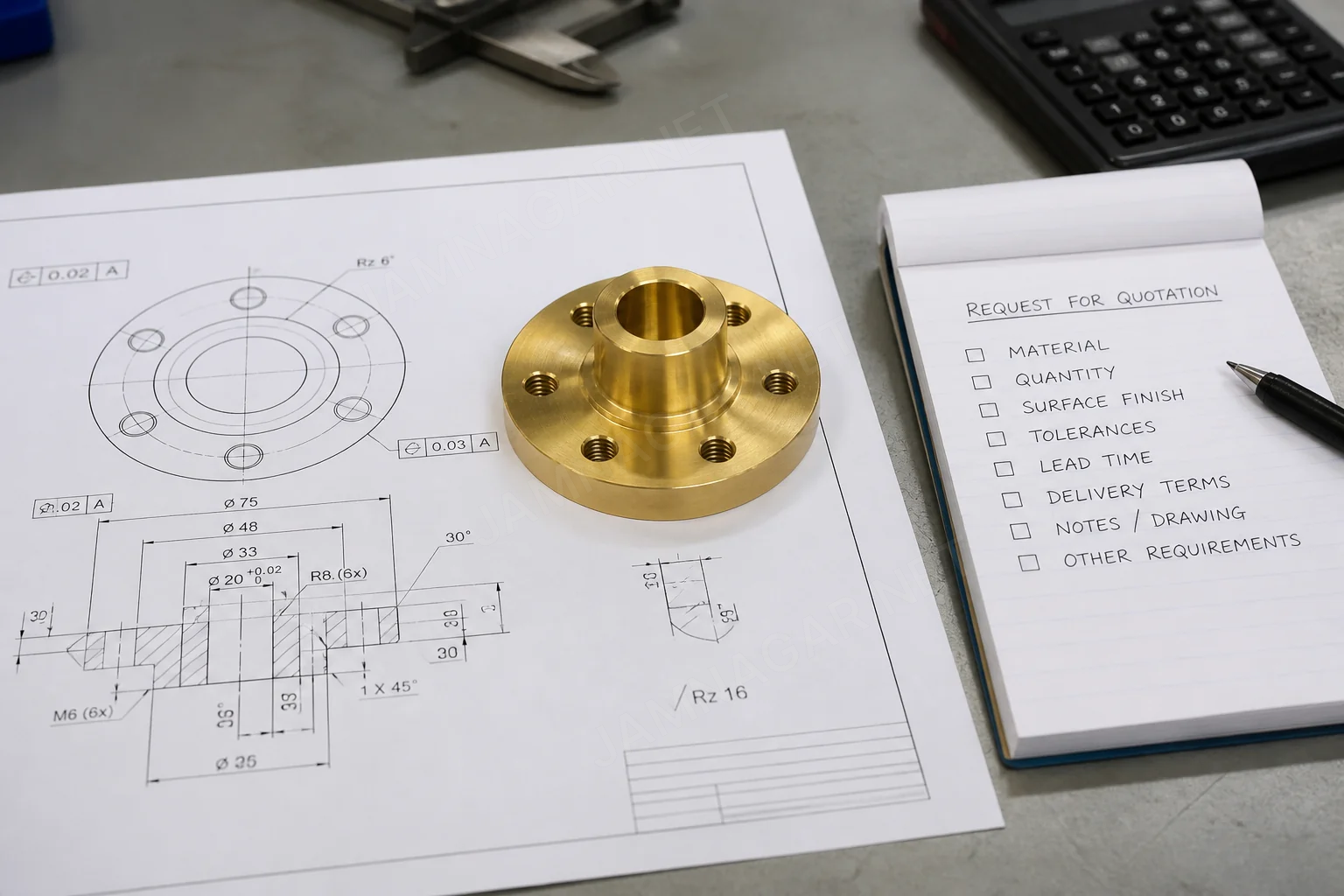

Master checklist table
| Checklist item | Acceptable input | Not enough |
|---|---|---|
| Identity | Your part number + revision | “Same as last time” with no PO ref |
| Geometry | Controlled dimensioned drawing; add DXF/STEP as supporting files | Blurry WhatsApp photo only |
| Threads | Standard, size, pitch where applicable, fit/class and male/female form | “Standard thread” |
| Material | Grade / alloy line | “Brass” |
| Finish | Natural / nickel / other named | “Shiny” |
| Tolerances | Critical dims marked | No tolerances on mating faces |
| Quantity | Per size, with forecast if known | “MOQ?” with no volume hint |
| Duty notes | Media, pressure, plastic host, etc. | Silent on application when it changes grade |
| Packing | Bag/carton/label needs | Assumed export packing |
| Commercial | Delivery city / port / Incoterm if set | Price-only ask, no destination |

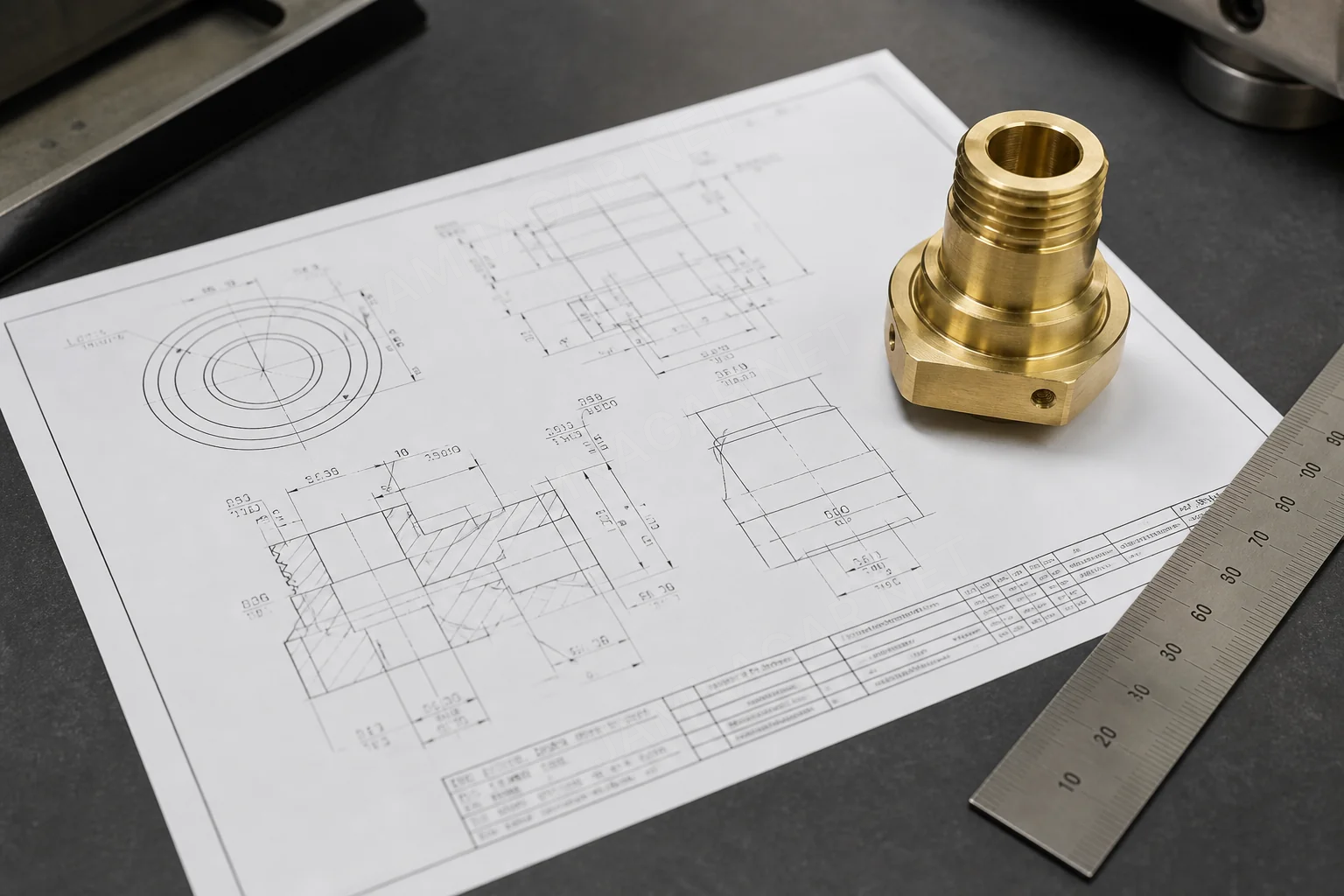

Drawing versus sample: pick a primary truth
If drawing and sample disagree, say which one wins. Production cannot honour both. Preferred order:
- Controlled drawing with revision
- Approved sealed sample with measured sheet
- Photo + dimensions (prototype only)
Multi-SKU quotations
Use a spreadsheet: part number, description, size, grade, finish, qty. Attach one zip of drawings named by part number. That format quotes faster than twelve separate emails.
What a usable quote reply should contain
Expect unit rate basis, grade/finish assumed, lead-time note after review, and packing assumptions. If anything was assumed because your file was thin, check those assumptions before you PO. A cheap quote built on wrong pitch is not a bargain.
Buyer tip: Put “do not assume grade” or “do not assume plating” as a hard line when those fields are still under engineering review. It is better to get a conditional quote than a wrong firm rate.
Quotation message template you can copy
Use a short structured message. Example fields in order:
- Company + buyer contact + delivery city or port
- Part number / revision / description
- Attached files list (drawing names)
- Material grade + finish
- Quantity now + annual forecast if known
- Thread / thickness / critical notes in one line each
- Packing + document needs
- Target need-by window (as a wish, not a demand against missing data)
That structure lets the desk answer with fewer clarification loops. If five SKUs share one finish and grade, say “common grade/finish for all lines” once, then list only the geometry differences per line.
What to do when engineering is still open
Mark the quote as budgetary when tolerances or grade are not frozen. Ask for a budgetary rate and a list of open assumptions. Convert to a firm quote only after revision freeze. Mixing budgetary geometry with a firm PO date is how disputes start.
If purchasing must compare two process routes — for example bar-machine versus forge-plus-machine — ask for both assumptions explicitly. Do not expect one number to represent two routes.
After you receive the quote
Check assumed grade, assumed finish, assumed packing, and whether tooling is included. Check that thread standards match your mating parts. Check that the quantity break you approved is the quantity you will PO. Then place the order against the same revision used in the quote. Silent revision bumps after quoting are the fastest way to invalidate a rate.
Common incomplete quotations and the fix
| Incomplete ask | What to add |
|---|---|
| “Quote this brass part” + photo | Critical dims, thread, grade, qty |
| “Same as previous” with no PO | Prior PO / part number / revision |
| “M6 screw brass” | Pitch, length, head, drive, finish |
| “Insert for plastic” | Boss ID, knurl/OD, length, install method |
| “Export packing” | Bag/carton rules + destination |
| “Best price ASAP” | Quantity breaks + frozen drawing |
If you cannot fill a row yet, say it is open and ask for a budgetary reply. Clarity about uncertainty is still better than silent gaps.
FAQ
Can a photo support an accurate quote?
It can identify a family, but dimensions, thread, material, finish and quantity are still needed. If details remain open, request a budgetary estimate and list assumptions to resolve before production.
Is a 3D model sufficient?
A model may not show thread details, material, tolerances or finish. Include a controlled drawing or specification and state which document takes precedence if files disagree.
What if drawing and sample differ?
Identify the controlling reference and document differences. Do not leave production to infer whether a worn sample, old drawing or new model controls the order.
How should multiple parts be submitted?
Number each line and match part numbers and revisions to file names. Give separate quantities, grades and finishes, and identify shared requirements explicitly.
What should I check in the reply?
Review drawing revision, material, finish, quantity, inspection, packing and delivery scope. Check validity and separate tooling or sample costs. Resolve assumptions before ordering.
How should confidential files be handled?
Agree required confidentiality terms before sharing restricted drawings. Start with non-sensitive scope information, then use the agreed channel and document controls.
Related reading
Related reading on Jamnagar.net: custom brass quote pack · alloy grades to name on quotes.
Next step
Run your enquiry against the table above, then submit one complete quotation. Incomplete files create incomplete prices.
